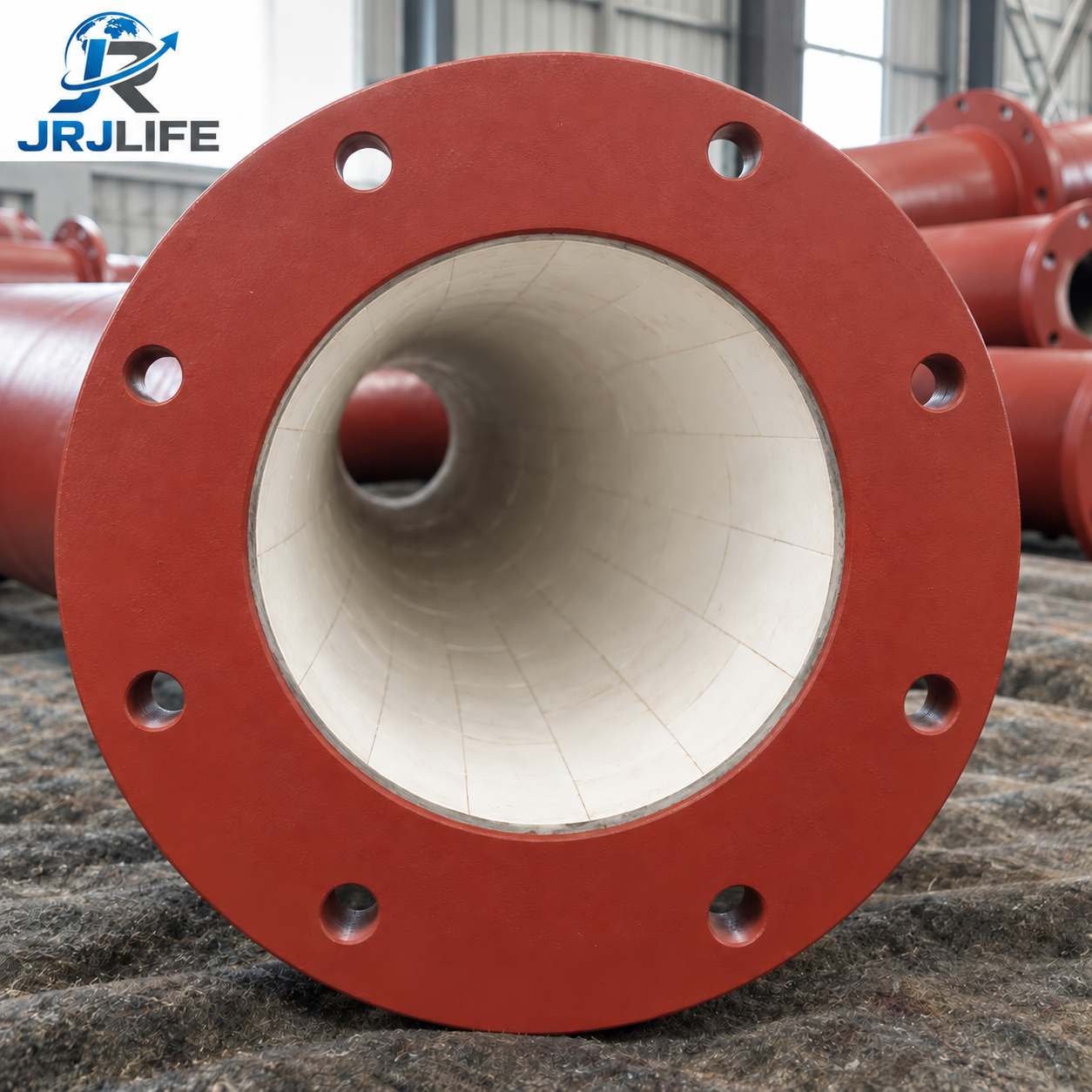

Hard ceramic working surface
The catalog gives a Rockwell A hardness of 80–90 for the high alumina ceramic. This is a ceramic property, not the hardness of the supporting steel shell.

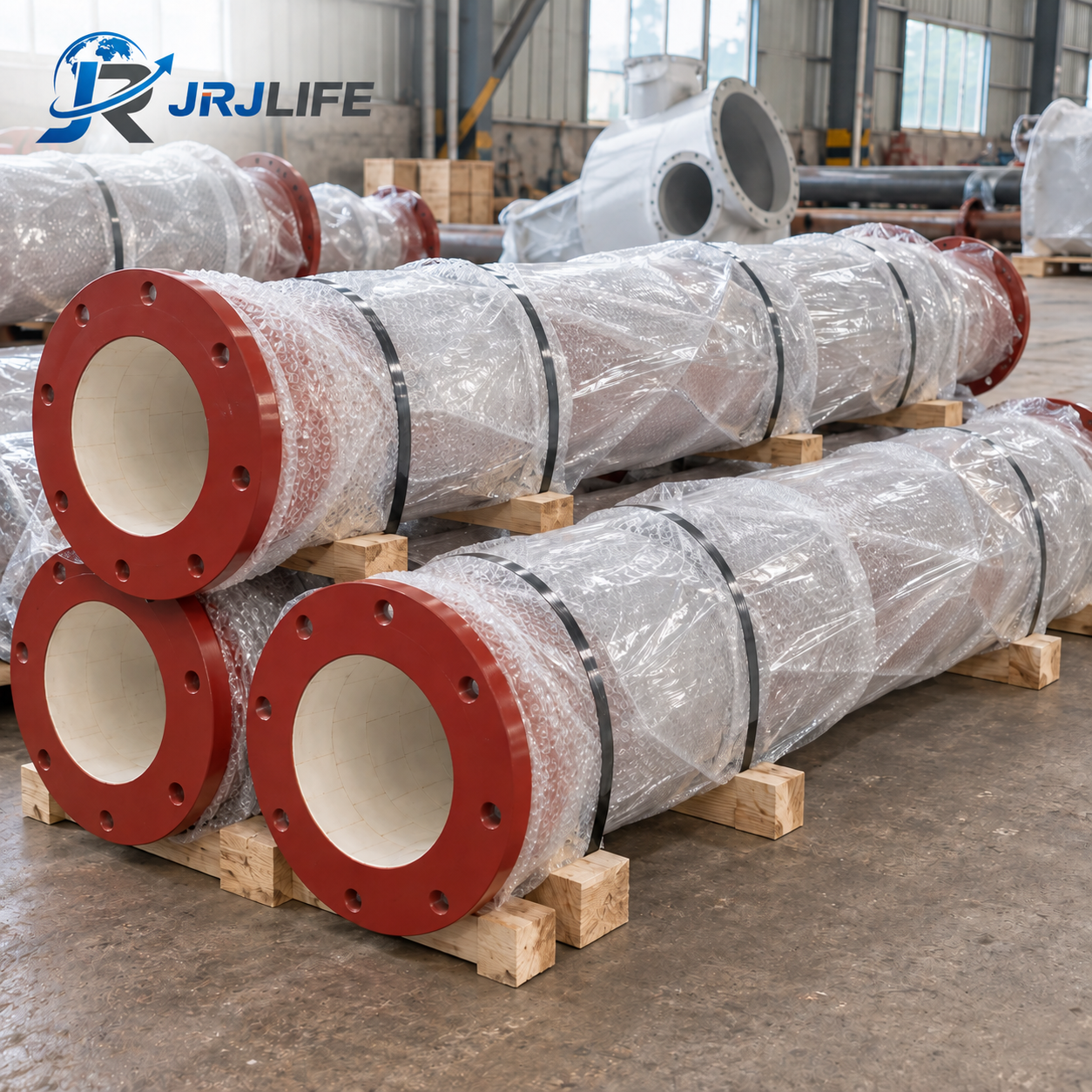

Branded illustrations show product concepts and example scenes. They do not establish actual factory, stock, packaging or supply specifications. Refer to the technical information and confirmed quotation.

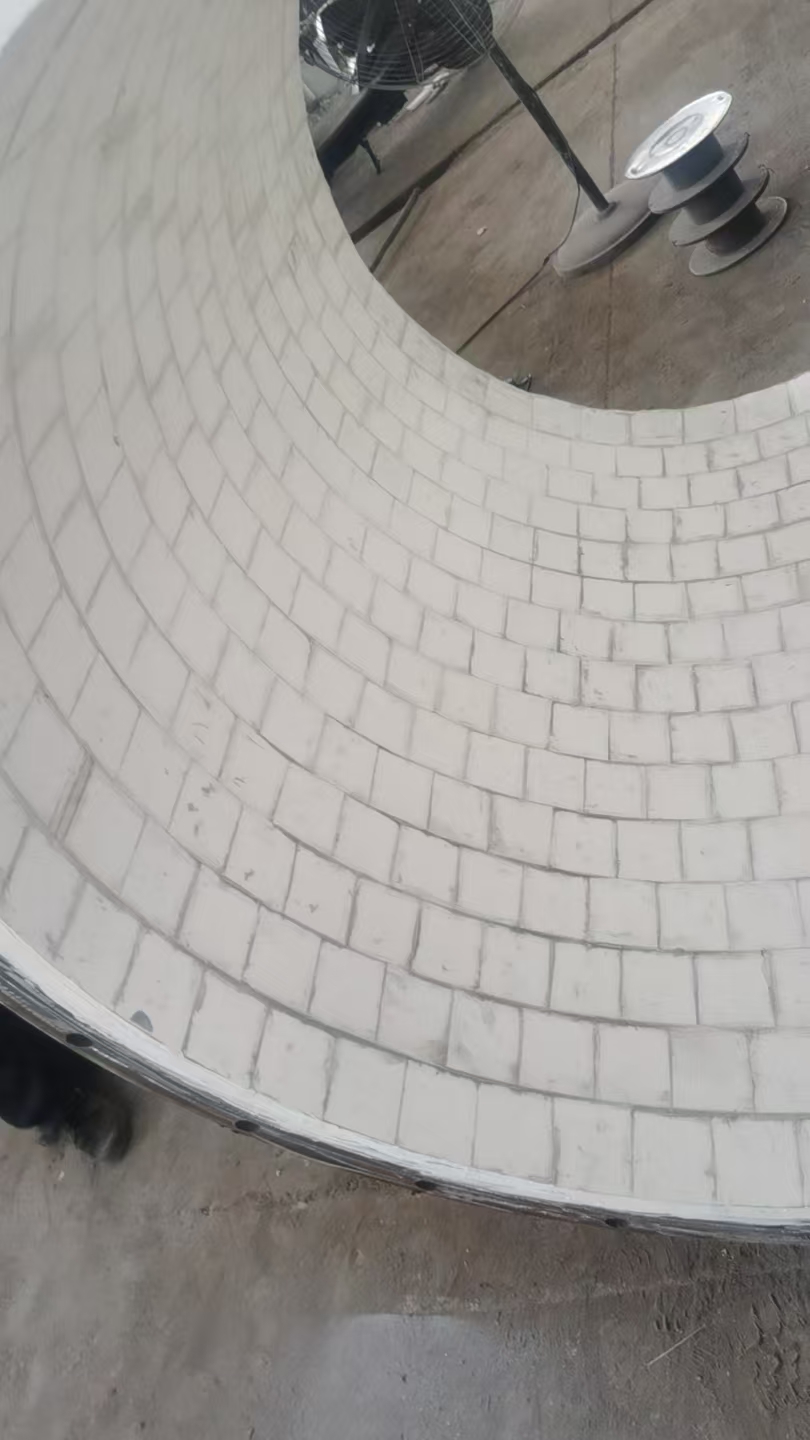

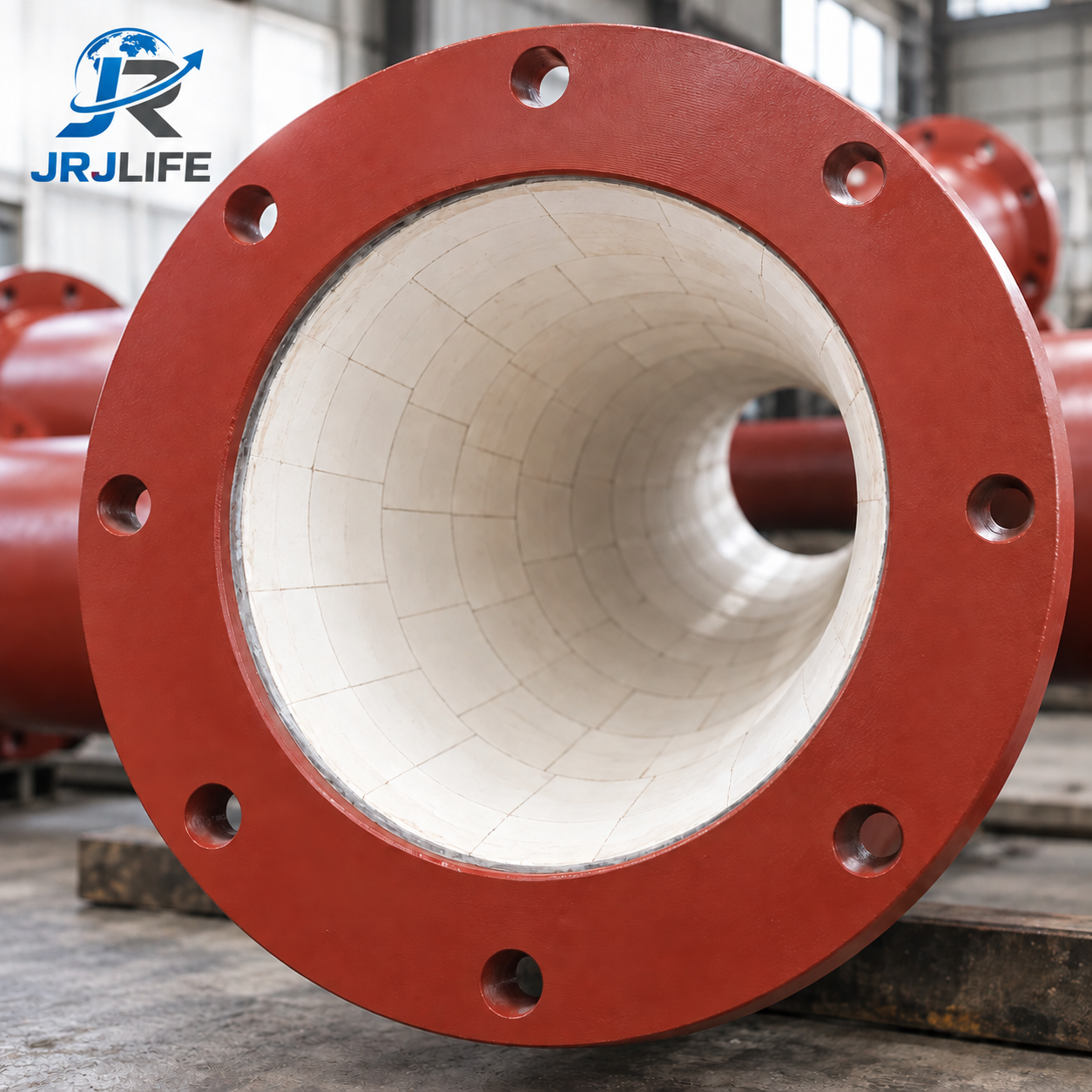

Ceramic lining

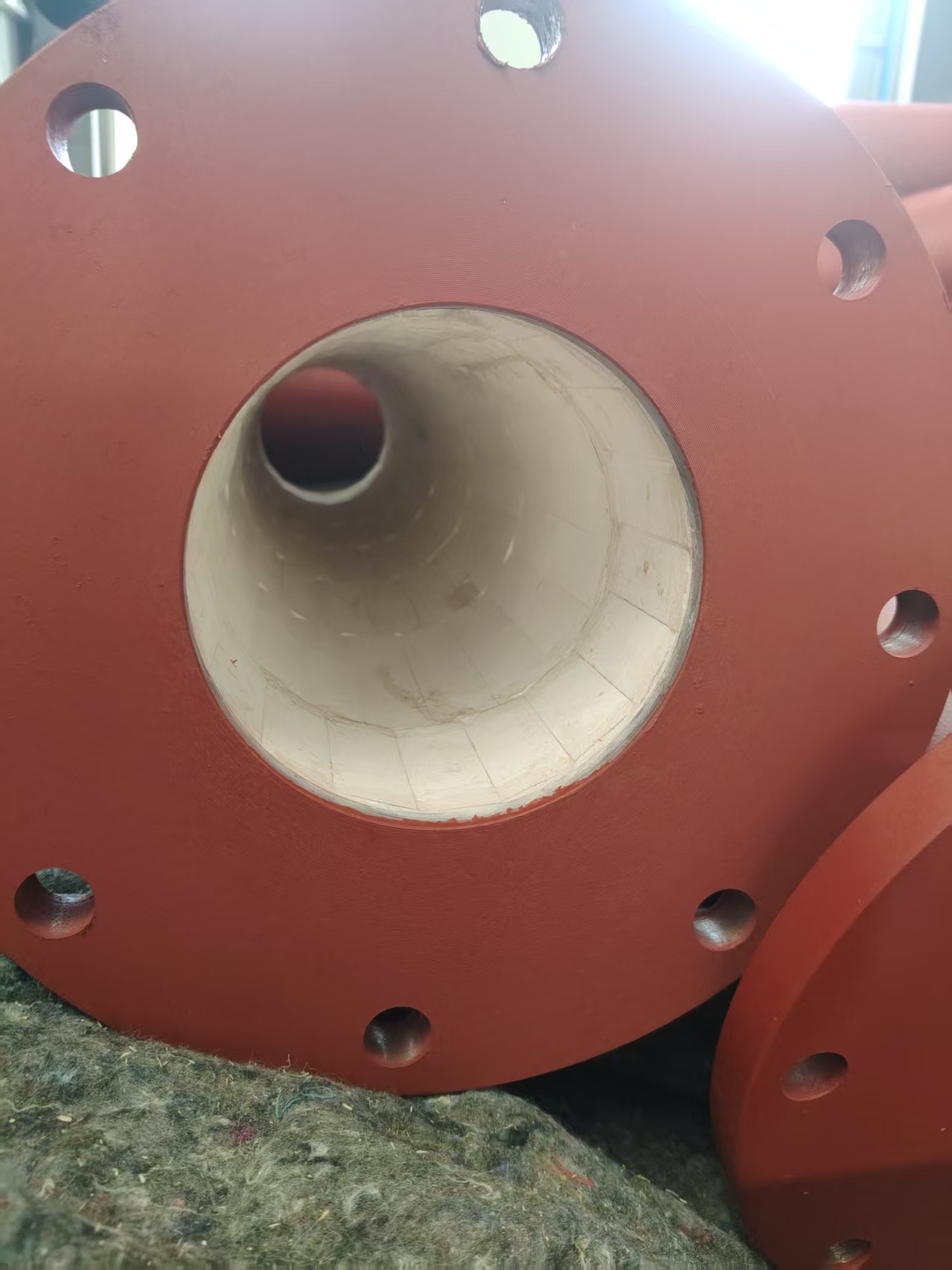

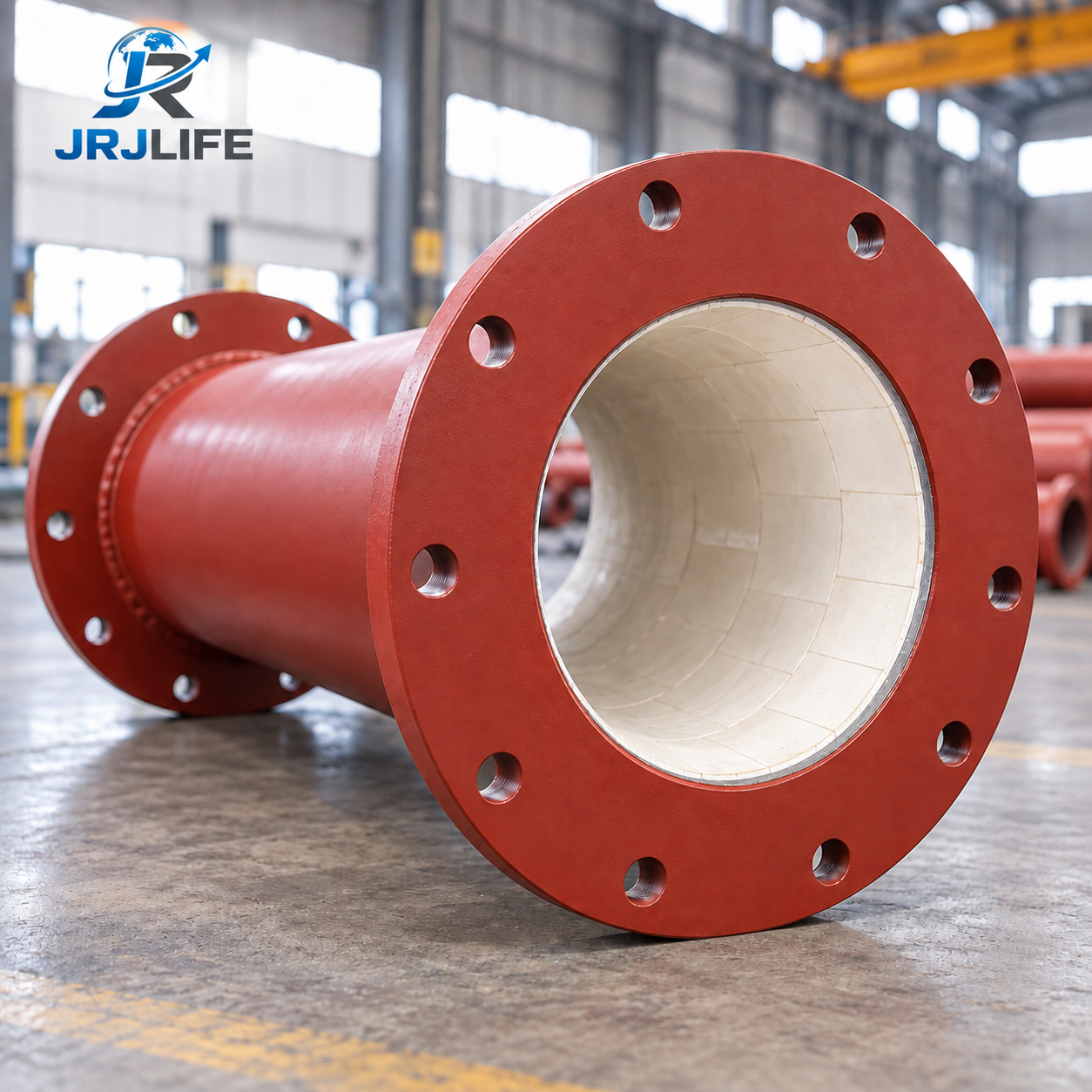

High Alumina Ceramic Lined Wear Resistant Steel Pipe
Bonded high alumina ceramic forms the wear surface inside a prepared steel substrate for abrasive conveying and equipment protection.
Al₂O₃ ≥95%Price, quantity, lead time and payment terms are confirmed in your quotation.
WeChat18263436286
Search this number in WeChat to add us.PRODUCT OVERVIEW
Construction.
Function. Application.
The ceramic is produced with alumina as the main raw material and rare-metal oxides as fluxes, fired at high temperature to form a hard corundum working surface. The catalog describes bonding this ceramic to a prepared metal substrate.
Ceramic pieces protect the areas exposed to abrasion while the outer metal construction supports the assembly. Adhesive, lining pattern and any rubber layer are selected for the duty of the specific component.

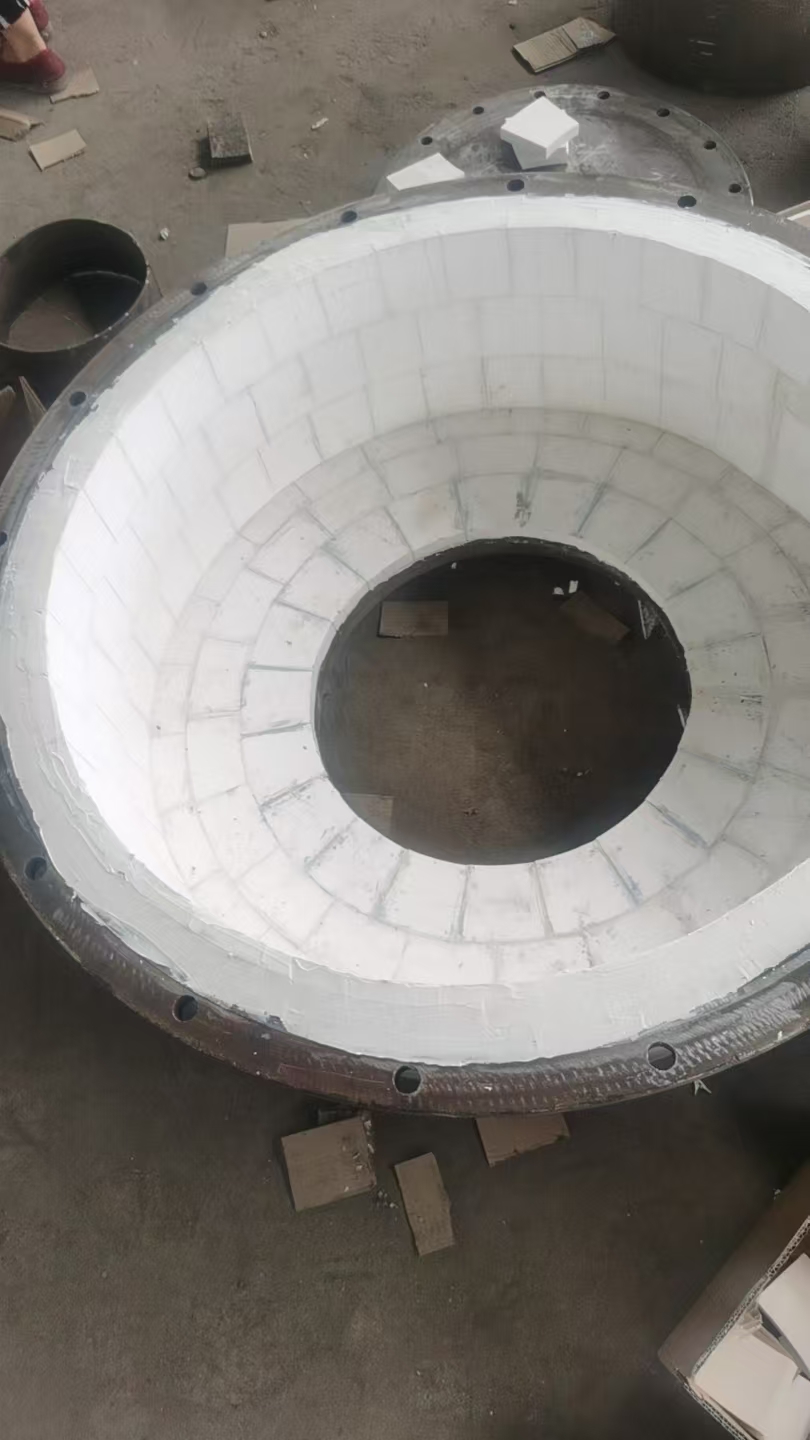

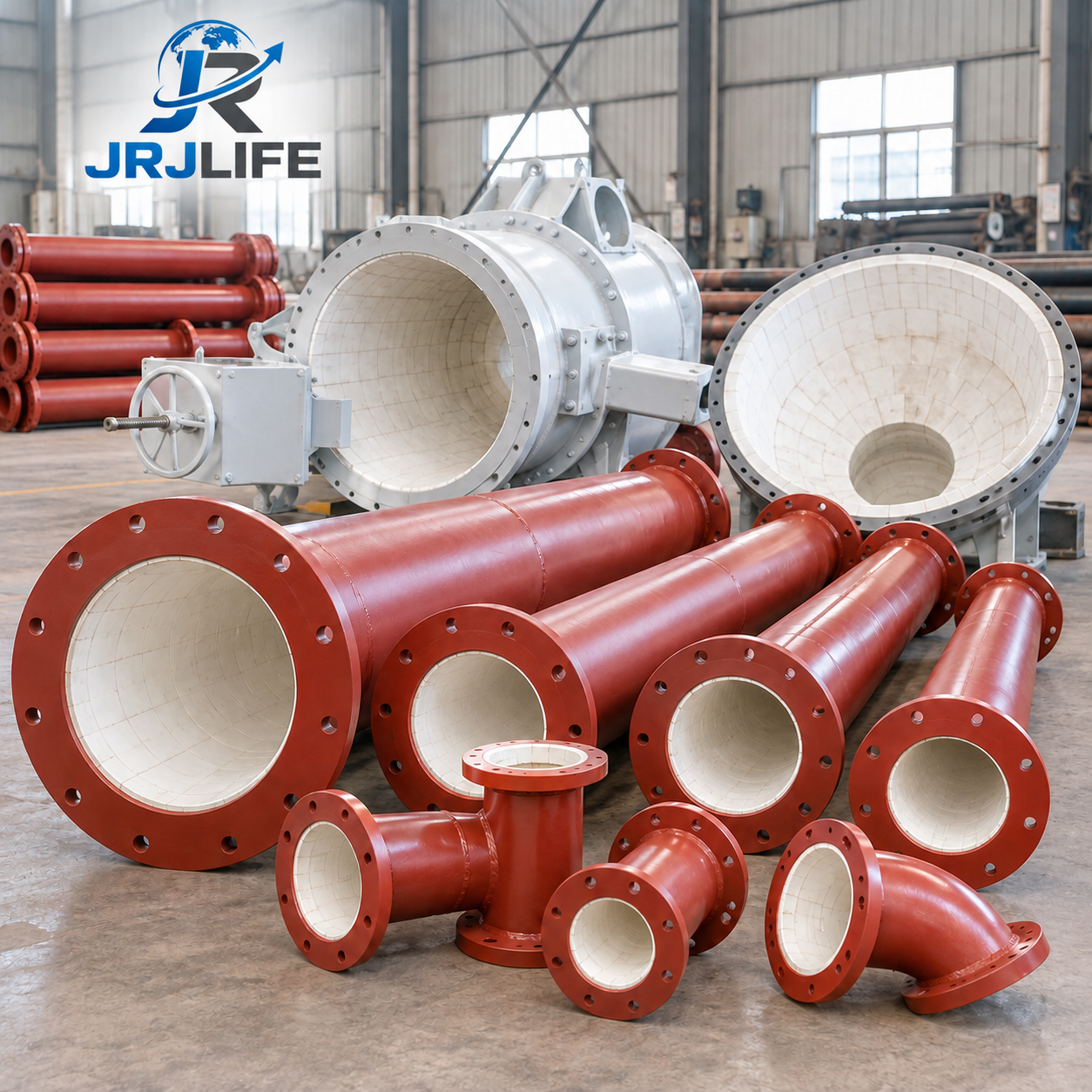

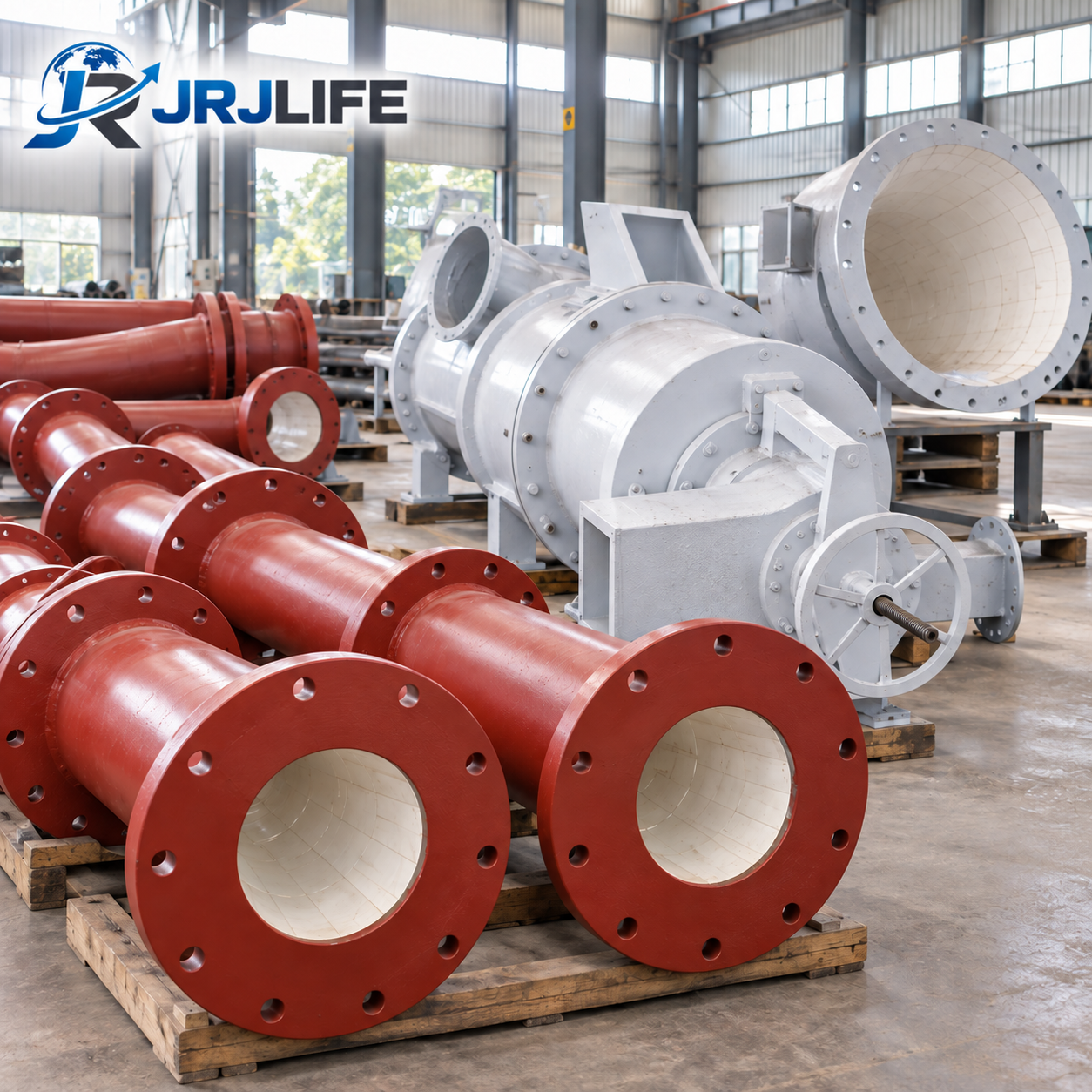

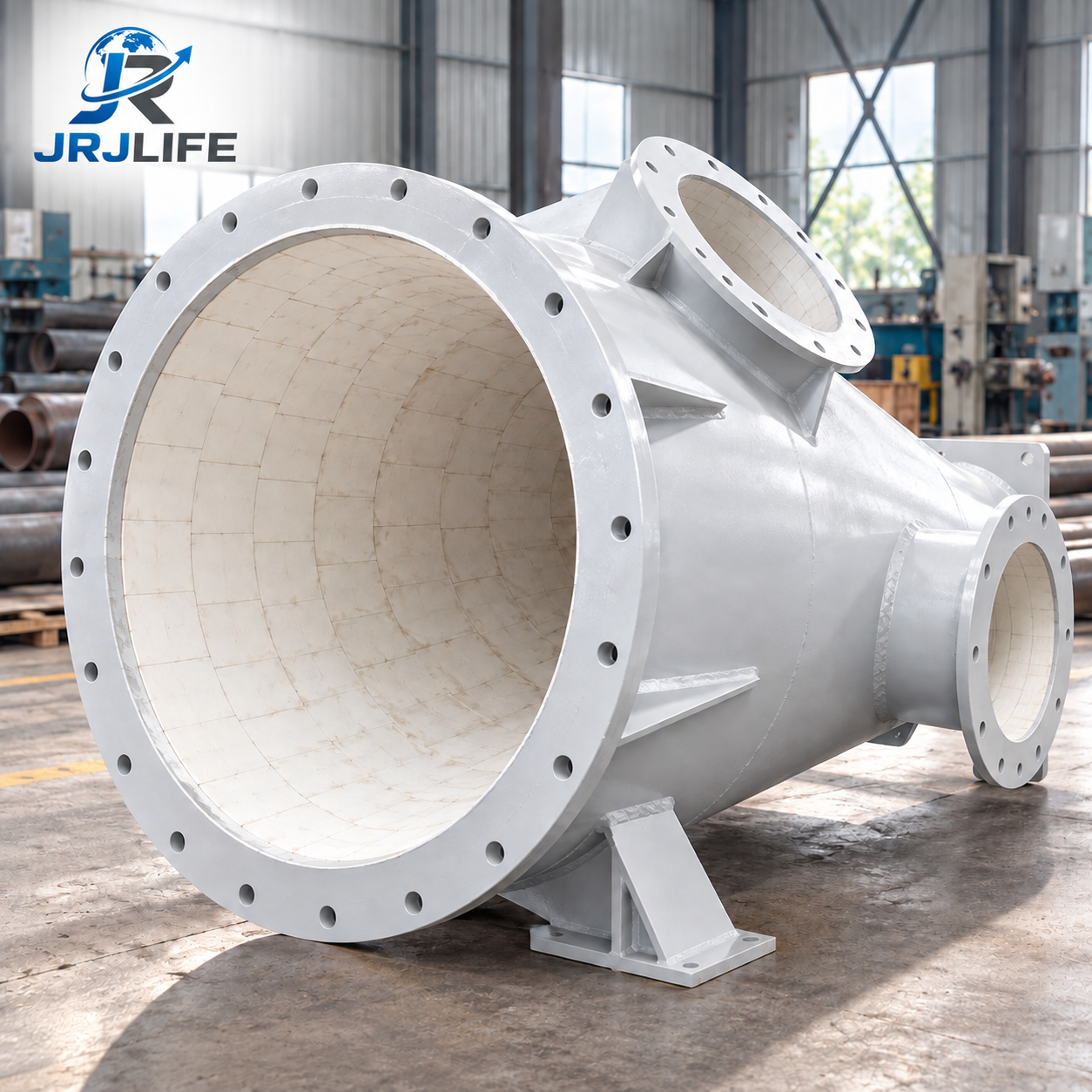

The product family includes lined pipework and non-standard elbows, tees and hoppers. Specify the actual geometry, wear zones and installation interfaces when requesting a quotation.
PRODUCT CHARACTERISTICS
What defines this product.
Wear protection for conveying equipment
Applied to coal and material handling, pulverizing, ash removal and dust collection equipment exposed to abrasive particles.
Relatively light lining material
A catalog ceramic density of 3.6 g/cm³ allows the lining weight to be considered separately from the steel assembly.
Bonding and heat resistance
A heat-resistant adhesive is described for 350°C service. The complete assembly must be reviewed against the actual temperature and duty.
Project-specific component shapes
Straight sections, elbows, tees and hoppers can be discussed against drawings and replacement requirements.
TECHNICAL INFORMATION
Specifications & selection
Catalog reference values for this product family. Final supply specifications are confirmed against your application and approved drawing.
| Lining material | Special corundum ceramic based on Al₂O₃ |
|---|---|
| Alumina content | ≥95% |
| Ceramic hardness | HRA 80–90 |
| Ceramic density | 3.6 g/cm³ |
| Ceramic firing temperature | 1,700°C, as described in the catalog |
| Substrate preparation | Sandblasted metal substrate |
| Bonding system | Organic / inorganic adhesive; rubber combination according to construction |

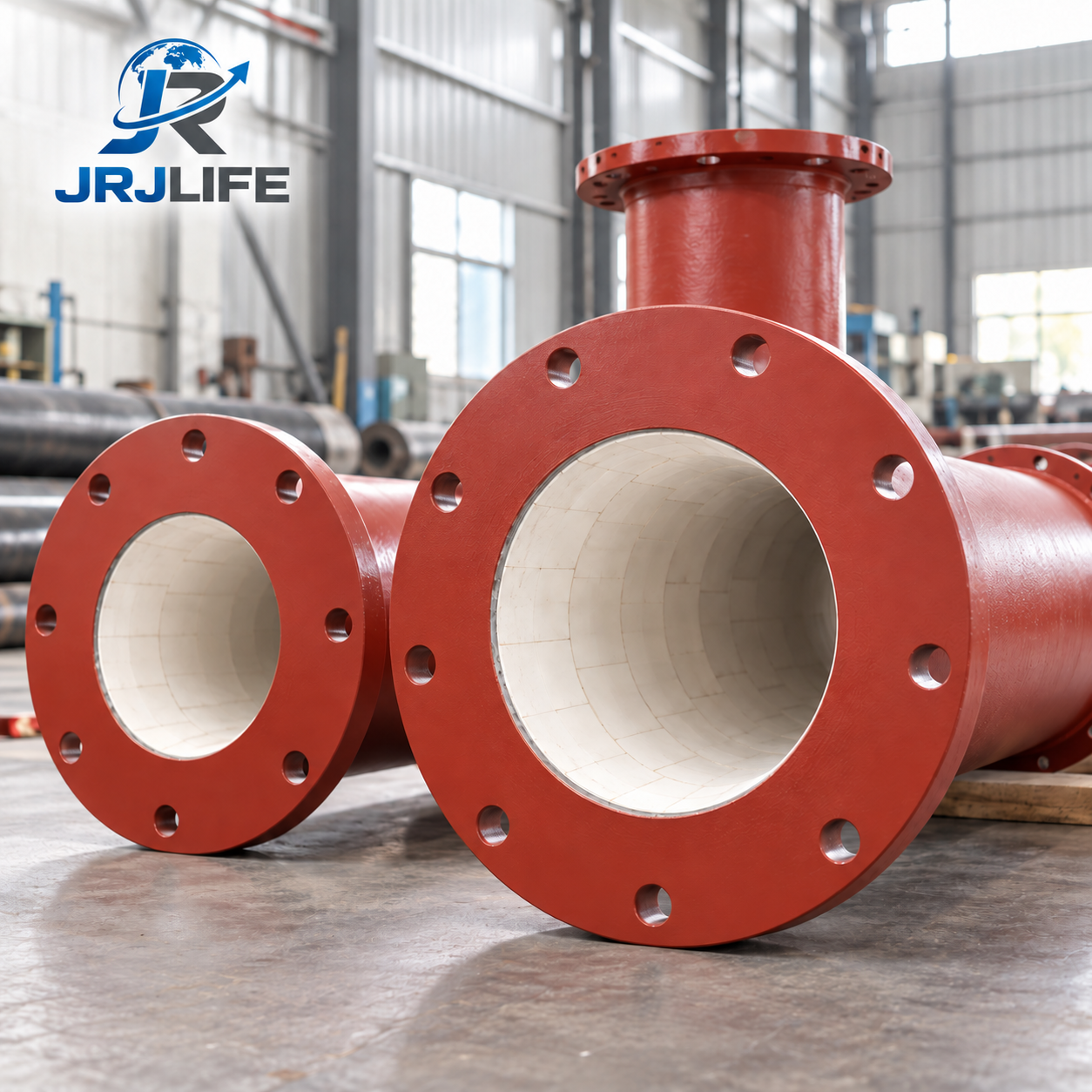

| Forms | Straight pipes, elbows, tees and non-standard lined components |
| Adhesive temperature reference | 350°C; final assembly duty requires confirmation |
Confirm ceramic thickness, adhesive system, pressure, temperature, dimensions and connection standard before ordering.
DETAILED CATALOG DATA
Compare the listed options.
Open a table to view the full schedule.
On smaller screens, scroll across to see all columns.
| Comparison material | Relative wear resistance stated |
|---|---|
| Manganese steel | 266× |
| High-chromium cast iron | 171.5× |
These are comparative statements in the supplied catalog. Test reports and full conditions are not supplied; they are not a guaranteed service-life multiplier for a project.
